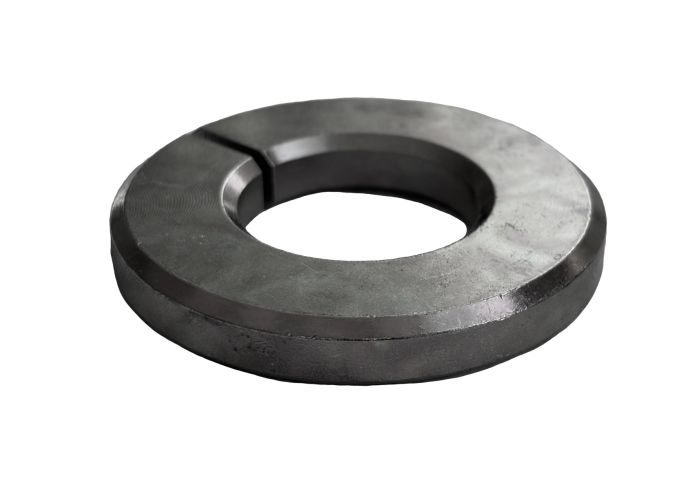

Locking rings type Cat J
Locking rings for type Cat J bucket teeth. In all sizes - from J200 to J800.
SKU
lasringar-typ-cat-j
Variations
Size
Reference
Weight
Reference
J200 (for 2" teeth) Ø22
8E6209
0.01 kg
14010315
J250/J300 (for 2,5 & 3" teeth) Ø30
8E6259
0.03 kg
14010317
J350 (for 3,5" teeth) Ø40
8E6359
0.04 kg
14010318
J400 (for 4" teeth) Ø42
8E8409
0.10 kg
14010319
J450/J460 (for 4,5" teeth) Ø44
8E8469
0.10 kg
14010320
J550 (for 5,5" teeth) Ø53
8E5559
0.10 kg
14010321
J600 (for 6" teeth) Ø59
6I6609
0.10 kg
14010322
J700 (for 7" teeth) Ø70
4T4707
0.18 kg
14010325
J800 (for 8" teeth)
1341809
0.20 kg
14010635
Description
Partrex locking rings for all teeth in the Cat J system. The locking rings must be sufficiently resilient and resist fatigue so that the ring holds the locking pin for at least as long as the tooth holds. A good fit in the adapter is also crucial for the locking rings to work correctly. (The locking ring is inserted in the adapter before the tooth is inserted and the locking pin is inserted.)
