Partrex Excavator tooth system Twist V23 (machines 8-15 tons)

Excavator tooth system Twist V23 (machines 8-15 tons)

  • Attachment for 30mm edge steel
  • Vertical locking
  • Maximum steel utilization
  • Minimal gap
  • Slim and sharp

SKU
gravtandsystem-twist-v23-maskiner-8-15-ton

Variations

Designation
Weight
Reference
Excavator holder 3870-V23 - cutting steell 30mm
4.50 kg
14012709

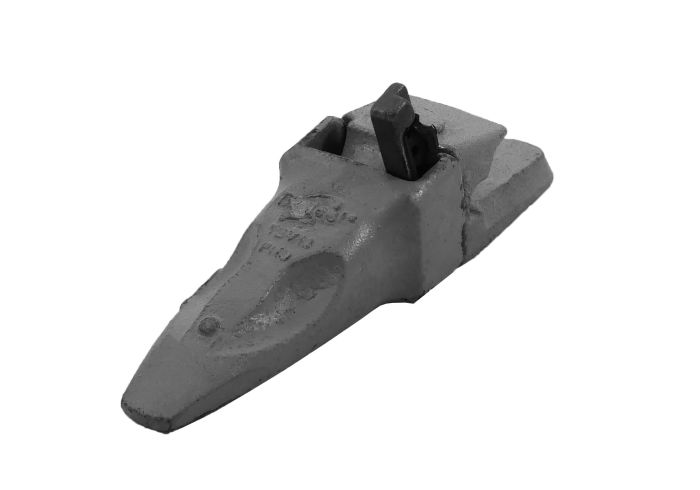

Digging tooth PHD V23
3.50 kg
14012705
Locking pin V19 V23 V23PN L52mm
0.05 kg
14012630
Description

Bucket tooth system Twist size V23, for buckets on excavators 8-15 tons. adapter for 30mm edge steel

Twist is locked vertically with a locking pin. Enables optional protection between the teeth. By turning it on for a quarter of its locking it vertically in the upper right corner. The design of the tooth and the location of the locking means that you can use the maximum of the tooth's material before replacement. The tooth tips have a very slim design and are made of a very high steel quality. Provides better overall economy than Cat J. teeth.

Twist is based on the same system and technology as the globally very well-proven tooth system Super V; considered by many to be the best tooth system ever developed.
