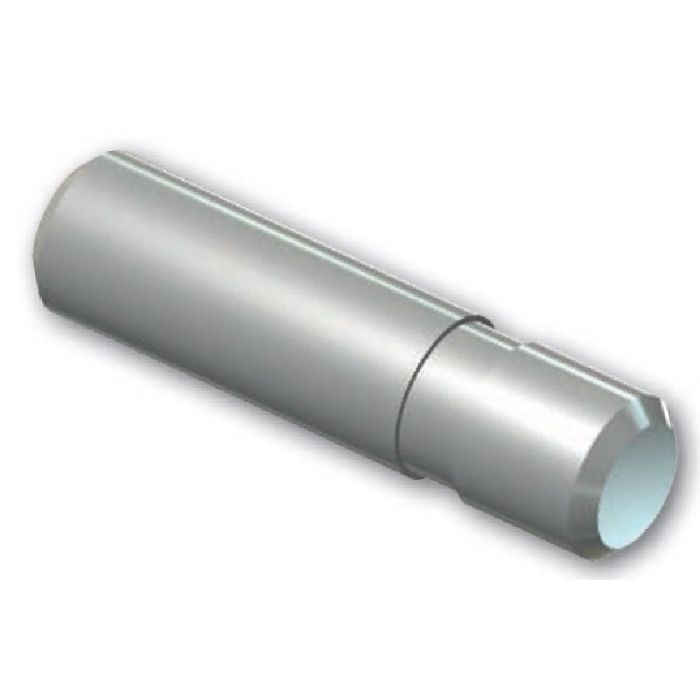

Locking pins type Cat J
Locking pins for type Cat J bucket teeth. In all sizes - from J200 to J800.
SKU
laspinnar-typ-cat-j
Variations
Size
Reference
Weight
Reference
J200 (for 2" teeth) Ø11x61
8E6208
0.04 kg
14010305
J250 (for 2,5" teeth) Ø14x78
8E6258
0.12 kg
14010307
J300 (for 3" teeth) Ø14x92
9J2308
0.12 kg
14010308
J350 (for 3,5" teeth) Ø19x108
8E6358
0.24 kg
14010309
J400 (for 4" teeth) Ø22x119
7T3408
0.40 kg
14010310
J450/J460 (for 4,5" teeth) Ø24x141
8E0468
0.50 kg
14010311
J550 (for 5,5" teeth) Ø25x162
6Y8558
0.60 kg
14010312
J600 (for 6" teeth) Ø30x195
6I6608
1.01 kg
14010313
J700 (for 7" teeth) Ø32x200
9U9616G
1.20 kg
14010324
J800 (for 8" teeth) Ø35x240
1341808
1.75 kg
14010634
Description
Partrex locking pins for all teeth in the Cat J system. The locking pins must be sufficiently hard and rigid to withstand wear and the large forces that can load the pin, for example if the tooth adapter is very worn. A good fit in the adapter is also crucial for the locking pins to work correctly. The locking pin is inserted into the tooth and the adapter until it is locked by the locking ring that is inserted in the adapter before the tooth is inserted.
